ROS and ROS bags

March 29, 2017, 10:28 p.m.

Summary

I spent today learning about ROS and how to process ROS bag files.

Background

Even though the data for the Didi challenge was released on the 22nd of March, I was not able to view it until yesterday, due to a painfully slow internet connection. The data was 32Gb, which tipped me over my download limit for the month, resulting in the download rates being capped to 20kb/s.

I was expecting the data to be like the Kitti raw dataset as was claimed by the description for the Didi challenge. However, the file structure of the data is completely different. It is composed of *.bag files, which i have learnt are files used by the Robot Operating System (ROS).

So today I spent my time installing ROS (which took forever on a 20kb/s connection). And learning how to process ROS bag files.

Installing

The Didi challenge rules state that the submissions must be compatible with an Ubuntu 14.04 + ROS Indigo platform. My operating system is already based on Ubuntu 14.04, so I followed the instructions for installing the Indigo version of ROS from the ROS wiki, which can be condensed to the following:

# INSTALL ROS INDIGO - in ubuntu 14.04

# ADD TO APT REPOSITORY LIST
sudo sh -c 'echo "deb http://packages.ros.org/ros/ubuntu trusty main" > /etc/apt/sources.list.d/ros-latest.list'

# SETUP KEYS
sudo apt-key adv --keyserver hkp://ha.pool.sks-keyservers.net --recv-key 421C365BD9FF1F717815A3895523BAEEB01FA116

# UPDATE APT PACKAGE LIST
sudo apt-get update

# INSTALL THE DESKTOP FULL VERSION
sudo apt-get install ros-indigo-desktop-full

# BARE BONES VERSION - NO GUI
# sudo apt-get install ros-indigo-ros-base

# INITIALIZE ROSDEP
sudo rosdep init
rosdep update

# ENVIRONMENT SETUP
echo "source /opt/ros/indigo/setup.bash" >> ~/.bashrc
source ~/.bashrc

# GET ROSINSTALL
sudo apt-get install python-rosinstall

SETUP

The next step was ensuring that the installation was succesful, by checking that the ROS_ROOT and ROS_PACKAGE_PATH environment paths actually exist. This was checked using the following command.

printenv | grep ROS

Once that was confirmed, it was a matter of configuring ROS on my system, which involved using the following steps from the ROS wiki

# SOURCING  ENVIRONMENT - for indigo version
source /opt/ros/indigo/setup.bash

# CREATING A ROS CATKIN WORKSPACE
mkdir -p ~/catkin_ws/src
cd ~/catkin_ws/
catkin_make

# SOURCING  CATKIN ENVIRONMENT - and automatically get it to source from now on
echo "source ~/catkin_ws/devel/setup.bash" >> ~/.bashrc
source ~/catkin_ws/devel/setup.bash

Once again, it was important to check that this configuration was succesful by checking that the newly created catkin workspace was included in the environment path for ROS_PACKAGE_PATH. This was checked by running the following command:

echo $ROS_PACKAGE_PATH

Which should return something like:

/home/youruser/catkin_ws/src:/opt/ros/kinetic/share

Visualising using tutorial

In order to get an idea of both ROS and the data for the Didi Challenge, i made use of the instructions in this Github post to visualize the data.

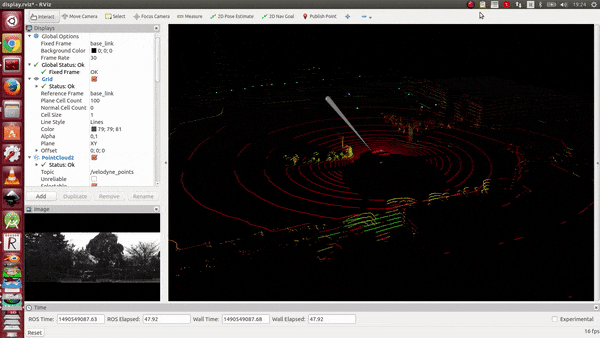

Following the steps on there gave a visualization like the following (Gif courtesy of Giovanni Claudio):

Image of visualisationin Rviz

But after running this, it was not in the slightest bit clear to me how this is useful for processing the data. So I decided to attempt something that would feel more familiar, by looking at the python API.

Rospy

When ROS is installed, there is a python package that is automatically added called rospy. If you use the default version of python on your system then it can just be imported from within your python shell using:

import rospy

However, I had set up a virtualenv without using the --system-site-packages option. So it did not make use of any of the global python libraries installed on the root python installation. So I needed to create pointers from my virtualenv to rospy libraries within the the dist-packages directory in the root python directory.

At first I tried creating a link to rospy, but then i found out that it depended on another library. So i linked to that one too, and another one, and another one. Soon i had a very long list of libraries that i was manually linking to and still had no idea how many more i would have to go.

So i decided on another approach. I decided to learn how to upadte a virtualenv so that it would act as if it was initialised with the --system-site-packages.

It turns out there is a file that acts like a switch, bewtween inheriting, and not inheriting libraries from the root installation. This file is:

/path/to/my/virtualenv/lib/python2.7/no-global-site-packages.txt

If it is present, then none of the installed libraries from the global python install are inherited. So, in order to inherit them, it is just a matter of deleting this file.

After doing this, I had access to rospy from my virtualenv.

Python API

After having rospy set up, it was a matter of probing what could be done with it.

Following the Python API documentation was completely fruitless. It didnt give me any insight into how I could read the Didi challenge data. This rosbag cookbook however was a little more helpful. I was able to modify some of the sample code on there to probe some information about the Didi data.

from __future__ import print_function
import os
import yaml
from rosbag.bag import Bag

data_dir = "/path/to/didi_data"  # Change this to the path in your computer
bag_name = 'approach_1.bag'      # Change to the desired ros bag
bag_file = os.path.join(bag_file_dir, bag_file_name)

info_dict = yaml.load(Bag(bag_file, 'r')._get_yaml_info())

# Print the information contained in the info_dict
info_dict.keys()
for topic in info_dict["topics"]:
    print("-"*50)
    for k,v in topic.items():
        print(k.ljust(20), v)

Which prints out the following:

--------------------------------------------------
topic                /cloud_nodelet/parameter_descriptions
type                 dynamic_reconfigure/ConfigDescription
messages             1
--------------------------------------------------
topic                /cloud_nodelet/parameter_updates
type                 dynamic_reconfigure/Config
messages             1
--------------------------------------------------
topic                /diagnostics
connections          3
frequency            75.7368
messages             77
type                 diagnostic_msgs/DiagnosticArray
--------------------------------------------------
topic                /diagnostics_agg
connections          2
frequency            1.9999
messages             23
type                 diagnostic_msgs/DiagnosticArray
--------------------------------------------------
topic                /diagnostics_toplevel_state
connections          2
frequency            2.0
messages             23
type                 diagnostic_msgs/DiagnosticStatus
--------------------------------------------------
topic                /gps/fix
type                 sensor_msgs/NavSatFix
frequency            10.0084
messages             86
--------------------------------------------------
topic                /gps/rtkfix
type                 nav_msgs/Odometry
frequency            10.0113
messages             112
--------------------------------------------------
topic                /gps/time
type                 sensor_msgs/TimeReference
frequency            10.0114
messages             106
--------------------------------------------------
topic                /image_raw
type                 sensor_msgs/Image
frequency            29.9965
messages             333
--------------------------------------------------
topic                /obs1/gps/fix
type                 sensor_msgs/NavSatFix
frequency            1.0009
messages             11
--------------------------------------------------
topic                /obs1/gps/rtkfix
type                 nav_msgs/Odometry
frequency            9.9881
messages             111
--------------------------------------------------
topic                /obs1/gps/time
type                 sensor_msgs/TimeReference
frequency            10.0041
messages             85
--------------------------------------------------
topic                /radar/points
type                 sensor_msgs/PointCloud2
frequency            19.999
messages             222
--------------------------------------------------
topic                /radar/range
type                 sensor_msgs/Range
frequency            20.0016
messages             222
--------------------------------------------------
topic                /radar/tracks
type                 radar_driver/RadarTracks
frequency            19.9976
messages             222
--------------------------------------------------
topic                /rosout
connections          7
frequency            29228.5993
messages             15
type                 rosgraph_msgs/Log
--------------------------------------------------
topic                /tf
type                 tf2_msgs/TFMessage
frequency            99.2946
messages             1100
--------------------------------------------------
topic                /velodyne_nodelet_manager/bond
connections          3
frequency            31.9959
messages             44
type                 bond/Status
--------------------------------------------------
topic                /velodyne_packets
type                 velodyne_msgs/VelodyneScan
frequency            9.9908
messages             111
--------------------------------------------------
topic                /velodyne_points
type                 sensor_msgs/PointCloud2
frequency            9.9911
messages             110

From what I have been able to gather, a "topic" is like a channel that different components of the robot can subscribe or publish to. Eg, a camera might take frames of images and then publish each frame to a channel dedicated to photos. Other parts of the robot might chose to listen to that channel in order to process the images in some way, which might then be published to another channel for processed images. Other parts of the robot might then be designed to listen to that channel and several other channels to process all the sensory data to make some kind of decision, which might itself be broadcast along another channel. It might be actuators, like a steering wheel controller, or the brake, that listens to that channel, and acts in a certain way depending on the message being broadcast.

So, it seems like the most important channels, or "topics" for the task of predicting 3D bounding boxes of cars in the scene would be the following two:

--------------------------------------------------
topic                /image_raw
type                 sensor_msgs/Image
frequency            29.9965
messages             333
--------------------------------------------------
topic                /velodyne_points
type                 sensor_msgs/PointCloud2
frequency            9.9911
messages             110

Next Steps

I still have absolutely no idea how to actually extract the data from those "topics" in the ROS bags, so learning how to do that will be the next step.
